Changing Display Colors in AutoCAD


Hi everyone, how are you today?
This time I will share about how to change the display color in AutoCAD work. The standard display color in AutoCAD is Bllack, like as the picture:

Display Before Changed

Wednesday, May 2, 2012

2D Drawing Methods

For 2D drawing, there are 3 methods commonly used, namely:

1. Method with the principle of the 2D Cartesian Think of it as a reference point located at coordinates 40.200, and the destination point at coordinates 400.60. Then to type the commands in the command promtnya like this:

Monday, April 30, 2012

Creating a Circle in AutoCAD

CIRCLE

To draw a circle can be worn several ways. The most commonly used are from the central point on the basis of the size of the radius (r) or diameter (D). The trick is asfollows:

1. Type the letter C (sorhtcut to circle) on your keyboard or click the Draw menu>Circle (Image 1)

Image 1.1

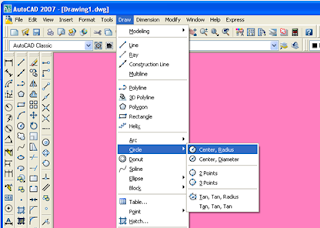

Menu Circle (Radius)

Sunday, April 22, 2012

WORKSPACE SETTING IN AUTOCAD

How are you today friend ... hopefully still adorn a bright smile on your face this morning ...
Friend of all, in using AutoCAD program. Certainly in the view initially appear to be so many tools that we know is not necessarily the function .. he he he. So we have to reset the display to our liking. Sometimes also when we had the look ofAutocad are you using, for example, we have displayed all the tools we need in the view which we have been setting. But it turns out when we close the programand reopen it, the settings we have made will be returned to the default settings ofAutoCAD that we have .. indeed annoying sometimes, because we have tore-display workspace setting to fit the way we want.

But friends, now we need not hesitate anymore, because I am going through thiswebsite a little to share experiences on how to set up the display of AutoCADworkspace that we use, so we not only have to always set up the look of the earlyuse of the program workspace.Okey ..... The trick is as follows:

First open autocad progaram our respective

This is the default view Autocad classsic
Image 1

Saturday, April 7, 2012

Coordinate Systems in AutoCAD


source Image
Coordinate system is very important in drawing techniques. Because each point and line positions of each. In the real world we can put any object anywhere without the rules that bind. But the drawing is not the same, because the media is very limited images, limited only by the paper or screen. It is important for us to know the principles of the coordinate system so that the image that we created in accordance with the shape and positioned.

Drawing in AutoCAD drawing can be done in principle freely without specifying coordinates. Dots and lines can be placed anywhere. Ignoring the coordinate system in the drawing of simple objects may not be a problem. But in drawing more complex objects and detail, the principles of the coordinates will definitely be a big problem.

Saturday, March 17, 2012

AutoCAD Glance


AoutoCAD Icon
In the current eratechnological progress was very rapidNearly all aspects of lifebegan to be touched by the name of technologyWith all the technology was moreeasily done. Various innovations do not cease untukmeninggkatkan use andapplication of technology in human lifeOne of the rapidly evolving technology is the CADD (Computer Aided Design and Drafting). The child's technology aims tofacilitate the Designer and the Drafter to visualize ideas in picture form.
